ADS1013-Q1

12-Bit ADC

ADS1013-Q1 Features

* AEC-Q100 qualified for automotive applications:

* Temperature grade 1:

* 40°C to +125°C, TA

* Functional Safety-Capable

* Documentation available to aid functional safety system design

* Noise-free resolution: 12 bit

* Wide supply range: 2.0 V

ADS1013-Q1 General Description

The ADS1013-Q1, ADS1014-Q1, and ADS1015-Q1 (ADS101x-Q1) are precision, low-power, 12-bit, I2C-compatible, analog-to-digital converters (ADCs) offered in VSSOP-10 and UQFN-10 packages. The ADS101x-Q1 incorporate a low-drift voltage reference and an oscillator. The ADS1014-Q1 and ADS1015Q1 also incor.

ADS1013-Q1 Datasheet (1.56 MB)

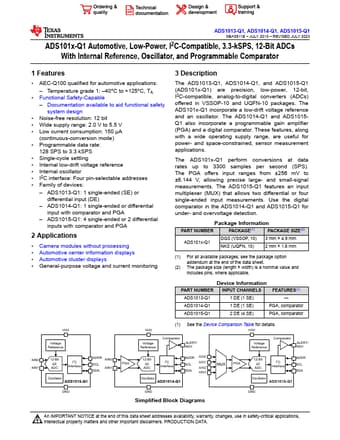

Preview of ADS1013-Q1 PDF

Datasheet Details

Part number:

ADS1013-Q1

Manufacturer:

Texas Instruments ↗

File Size:

1.56 MB

Description:

12-bit adc.
ADS1013-Q1, ADS1014-Q1, ADS1015-Q1 SBAS511E

* JULY 2010

* REVISED JULY 2023 ADS101x-Q1 Automotive, Low-Power, I2C-Compatible, 3.3-kSPS.
