DSD1608 - 8-CHANNEL/ ENHANCED MULTIFORMAT/ DELTA-SIGMA/ DIGITAL-TO-ANALOG CONVERTER

This page provides the datasheet information for the DSD1608, a member of the DSD1608_Burr 8-CHANNEL/ ENHANCED MULTIFORMAT/ DELTA-SIGMA/ DIGITAL-TO-ANALOG CONVERTER family.

Datasheet Summary

Description

The DSD1608 is a CMOS, monolithic, 8-channel digital-to-analog converter which supports both PCM audio data format and direct stream digital (DSD) audio data format.

Features

  • D Supports DSD and PCM Formats D Supports TDMCA D Accepts 16-, 18-, 20- and 24-Bit Audio Data for PCM Format.
  • Digital Filter Rolloff: Sharp or Slow Soft Mute Three Zero Flags 5-V Analog, 3.3-V Digital D Dual Supply Operation: D Package: 52-Pin TQFP.

📥 Download Datasheet

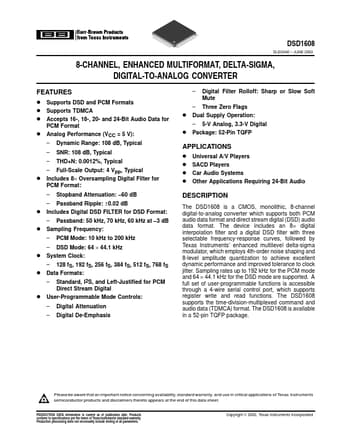

Datasheet preview – DSD1608

Datasheet Details

Part number DSD1608
Manufacturer Burr-Brown Corporation
File Size 293.18 KB
Description 8-CHANNEL/ ENHANCED MULTIFORMAT/ DELTA-SIGMA/ DIGITAL-TO-ANALOG CONVERTER
Datasheet download datasheet DSD1608 Datasheet
