INA118 - Precision/ Low Power INSTRUMENTATION AMPLIFIER

This page provides the datasheet information for the INA118, a member of the INA118_Burr Precision/ Low Power INSTRUMENTATION AMPLIFIER family.

Datasheet Summary

Description

The INA118 is a low power, general purpose instrumentation amplifier offering excellent accuracy.

Its versatile 3-op amp design and small size make it ideal for a wide range of applications.

Current-feedback input circuitry provides wide bandwidth even at high gain (70kHz at G = 100).

Features

  • q q q q q q q q LOW OFFSET.

📥 Download Datasheet

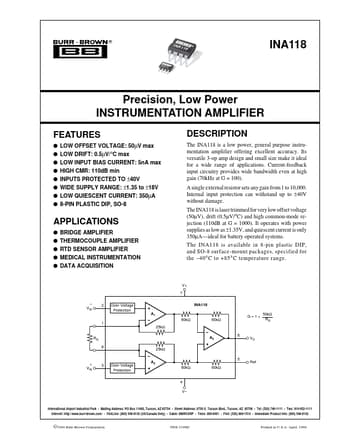

Datasheet preview – INA118

Datasheet Details

Part number INA118
Manufacturer Burr-Brown Corporation
File Size 242.98 KB
Description Precision/ Low Power INSTRUMENTATION AMPLIFIER
Datasheet download datasheet INA118 Datasheet
