INA193, INA193_Burr, CURRENT SHUNT MONITOR

INA193, INA194 INA195, INA196 INA197, INA198 SBOS307B * MAY 2004 * REVISED JUNE 2004 CURRENT SHUNT MONITOR *16V to 36V Common.
The INA193. INA198 family of current shunt monitors with voltage output can sense drops across shunts at common-mode voltages from. 16V.

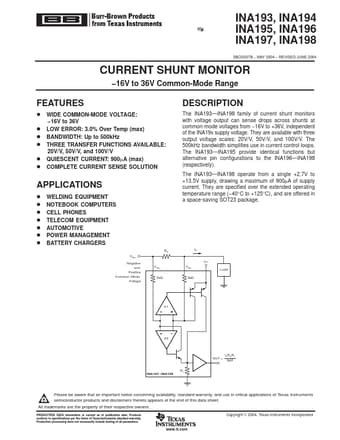

datasheet Preview Page 1 from Datasheet4u.com

INA193_Burr-BrownCorporation.pdf

INA193 Datasheet Preview — This datasheet PDF includes multiple part numbers: INA193, INA193_Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

INA193, INA193_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

226.39 KB

Description:

CURRENT SHUNT MONITOR

Note:

This datasheet PDF includes multiple part numbers: INA193, INA193_Burr.
Please refer to the document for exact specifications by model.

Features

* D WIDE COMMON-MODE VOLTAGE: D D D D D

Applications

* D D D D D D D WELDING EQUIPMENT NOTEBOOK COMPUTERS CELL PHONES TELECOM EQUIPMENT AUTOMOTIVE POWER MANAGEMENT BATTERY CHARGERS RS V IN+ Negative and Positive Common
* Mode Voltage IS V+ V IN+ 5kΩ V IN
* 5kΩ Load A1 A2 OUT = IS RS R L 5kΩ INA193
