INA194A-Q1, INA193A-Q1 Datasheet - Texas Instruments

INA194A-Q1 Current Shunt Monitor

The INA19xA-Q1 family of current shunt monitors with voltage output can sense drops across shunts at common-mode voltages from *16 V to 80 V, independent of the INA19xA supply voltage. They are available with three output voltage scales: 20 V/V, 50 V/V, and 100 V/V. The 500-kHz bandwidth si.

INA194A-Q1 Features

* Qualified for Automotive Applications

* Functional Safety-Capable

* Documentation available to aid functional safety system design

* Wide Common-Mode Voltage:

* 16 V to 80 V

* Low Error: 3% Overtemperature (Maximum)

* Bandwidth: Up to 500 kHz

INA193A-Q1-etcTI.pdf

This datasheet PDF includes multiple part numbers: INA194A-Q1, INA193A-Q1. Please refer to the document for exact specifications by model.

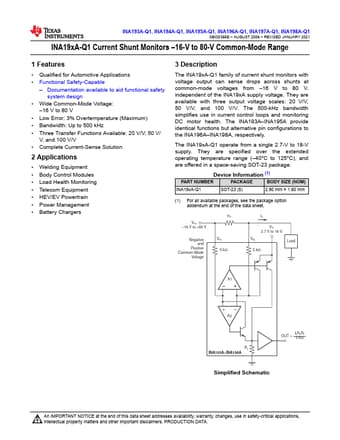

INA194A-Q1 Datasheet Preview Page 2 INA194A-Q1 Datasheet Preview Page 3
