IVC102 Datasheet - Burr-Brown Corporation

PRECISION SWITCHED INTEGRATOR TRANSIMPEDANCE AMPLIFIER

IVC102 Features

* q ON-CHIP INTEGRATING CAPACITORS q GAIN PROGRAMMED BY TIMING q LOW INPUT BIAS CURRENT: 750fA max q LOW NOISE q LOW SWITCH CHARGE INJECTION q FAST PULSE INTEGRATION q LOW NONLINEARITY: 0.005% typ q 14-PIN DIP, SO-14 SURFACE MOUNT 6 VB 5 Ionization Chamber IIN 4 3 2 S1 1 C1 C2 C3 30pF 60pF 14 V

IVC102 General Description

The IVC102 is a precision integrating amplifier with FET op amp, integrating capacitors, and low leakage FET switches. It integrates low-level input current for a user-determined period, storing the resulting voltage on the integrating capacitor. The output voltage can be held for accurate measureme.

IVC102 Datasheet (124.37 KB)

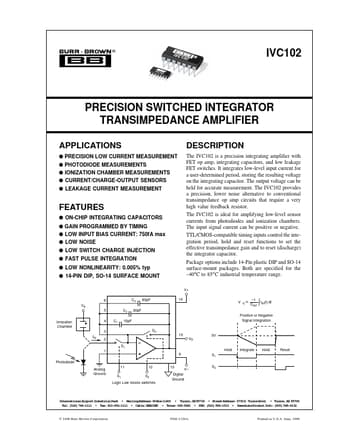

IVC102 Datasheet Preview — Preview of IVC102 PDF

Datasheet Details

Part number:

IVC102

Manufacturer:

Burr-Brown Corporation

File Size:

124.37 KB

Description:

Precision switched integrator transimpedance amplifier.
® IVC102 PRECISION SWITCHED INTEGRATOR TRANSIMPEDANCE AMPLIFIER APPLICATIONS q PRECISION LOW CURRENT MEASUREMENT q PHOTODIODE MEASUREMENTS q IONIZAT.
