MSC1202, MSC1201_Burr Precision ADC/DAC

MSC1202 Description

MSC1200 MSC1201 MSC1202 SBAS317E * APRIL 2004 * REVISED MAY 2006 Precision AnalogĆtoĆDigital Converter (ADC) and CurrentĆOutput Digita.

MSC1202 Features

* ANALOG FEATURES D MSC1200 and MSC1201:
* 24 Bits No Missing Codes
* 22 Bits Effective Resolution At 10Hz
* Low Noise: 75nV D MSC1202:
* 16 Bits No Missing Codes
* 16 Bits Effective Resolution At 200Hz
* Noise: 600nV D PGA From 1 to 128 D Precision On-C

MSC1202 Applications

* D Industrial Process Control D Instrumentation D Liquid/Gas Chromatography D Blood Analysis D Smart Transmitters D Portable Instruments D Weigh Scales D Pressure Transducers D Intelligent Sensors D Portable Applications D DAS Systems Please be aware that an important notice concerning availability,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MSC1202, MSC1201_Burr. Please refer to the document for exact specifications by model.

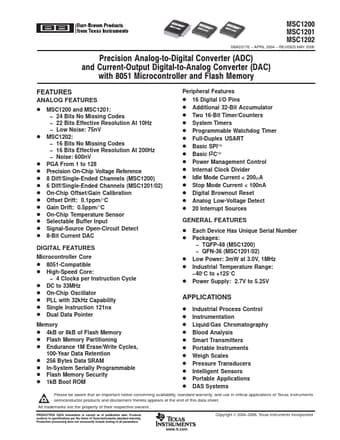

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSC1202, MSC1201_Burr
Manufacturer
Burr-Brown Corporation
File Size
2.00 MB
Datasheet
MSC1201_Burr-BrownCorporation.pdf
Description
Precision ADC/DAC
Note
This datasheet PDF includes multiple part numbers: MSC1202, MSC1201_Burr.
Please refer to the document for exact specifications by model.
