MSC1205 - 32-Bit Duplex Controller/Driver

Product Overview

OKI electronic componets

📥 Download Datasheet

MSC1205 32-Bit Duplex Controller/Driver by OKI electronic componets - Datasheet Preview — Datasheet preview – MSC1205

Datasheet Details

Part number	MSC1205
Manufacturer	OKI electronic componets
File Size	161.23 KB
Description	32-Bit Duplex Controller/Driver
Datasheet	MSC1205 Datasheet

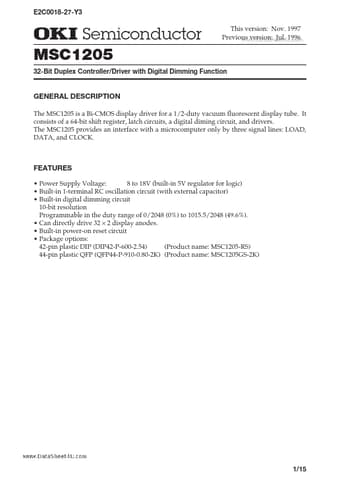

Additional preview pages of the MSC1205 datasheet.

Product details

Description

The MSC1205 is a Bi-CMOS display driver for a 1/2-duty vacuum fluorescent display tube.

Features

Power Supply Voltage: 8 to 18V (built-in 5V regulator for logic).
Built-in 1-terminal RC oscillation circuit (with external capacitor).
Built-in digital dimming circuit 10-bit resolution Programmable in the duty range of 0/2048 (0%) to 1015.5/2048 (49.6%).
Can directly drive 32.
2 display anodes.
Built-in power-on reset circuit.
Package options: 42-pin plastic DIP (DIP42-P-600-2.54) (Product name: MSC1205-RS) 44-pin plastic QFP (QFP44.
