PCM1738 Datasheet, Converter, Burr-Brown Corporation

✔ PCM1738 Features

24-Bit Resolution
Analog Performance (VCC = 5 V):
Dynamic Range: 117 dB (typical)
SNR: 117 dB (typical)
THD+N: 0.0004% (typical)
Full-Scale Output: 2.2 Vrms (

✔ PCM1738 Application

AV Receivers
DVD Movie Players
SACD Players
HDTV Receivers
Car Audio Systems
Digital Multitrack

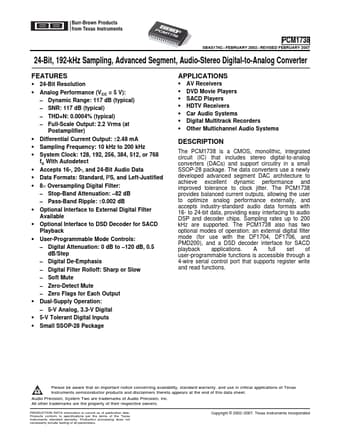

PDF File Details

Burr-Brown Corporation manufacturer logo and representative part image

Part number:

PCM1738

Manufacturer:

Burr-Brown Corporation

File Size:

741.54kb

Download:

📄 Datasheet

Description:

Audio-stereo digital-to-analog converter. The PCM1738 is a CMOS, monolithic, integrated circuit (IC) that includes stereo digital-to-analog converters (DACs) and support circu

📥 Download PDF (741.54kb)
