PCM1739 DIGITAL-TO-ANALOG CONVERTER

The PCM1739 is a CMOS, monolithic, integrated circuit which includes stereo 24-bit audio digital-toanalog converters and support circuitry in a small SSOP-28 package. The data converters utilize BurrBrown’s enhanced multi-level delta-sigma architecture, which employs 4th-order noise shaping and 8-le.

PCM1739 Features

* q 24-BIT RESOLUTION q ANALOG PERFORMANCE (VCC = +5V): Dynamic Range: 106dB typ SNR: 105dB typ THD+N: 0.0015% typ Full-Scale Output: 3.1Vp-p typ q 4x/8x OVERSAMPLING DIGITAL FILTER: Passband: 0.454fS Stopband: 0.546fS Stopband Attenuation:

* 82dB Passband Ripple: ±0.002dB q SAMPLING FREQUENCY:

PCM1739_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: PCM1739, PCM1739_Burr. Please refer to the document for exact specifications by model.

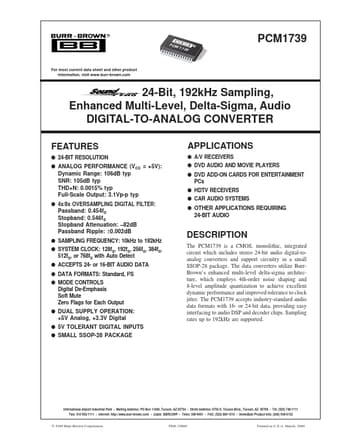

PCM1739 Datasheet Preview Page 2 PCM1739 Datasheet Preview Page 3

Datasheet Details

Part number:

PCM1739, PCM1739_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

140.00 KB

Description:

Digital-to-analog converter.

Note:

This datasheet PDF includes multiple part numbers: PCM1739, PCM1739_Burr.
Please refer to the document for exact specifications by model.
