ADS1601

16-BIT 1.25MSPS ANALOG TO DIGITAL CONVERTER

ADS1601 Features

* D High Speed: D Data Rate: 1.25MSPS Bandwidth: 615kHz Outstanding Performance: SNR: 92dB at fIN = 100kHz,

* 1dBFS THD:

* 103dB at fIN = 100kHz,

* 6dBFS SFDR: 105dB at fIN = 100kHz,

* 6dBFS Ease-of-Use: High-Speed 3-Wire Serial Interface Directly Connects to TMS320 DSPs On

ADS1601 General Description

The ADS1601 is a high-speed, high-precision, delta-sigma analog-to-digital converter (ADC) manufactured on an advanced CMOS process. The ADS1601 oversampling topology reduces clock jitter sensitivity during the sampling of high-frequency, large amplitude signals by a factor of four over that achieve.

ADS1601 Datasheet (424.89 KB)

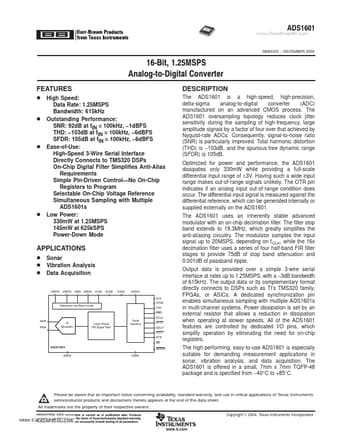

Preview of ADS1601 PDF

Datasheet Details

Part number:

ADS1601

Manufacturer:

Burr-Brown

File Size:

424.89 KB

Description:

16-bit 1.25msps analog to digital converter.
