CMP100 HIGH-SPEED WINDOW COMPARATOR ATE PIN RECEIVER

CMP100 is a high-speed dual comparator designed for use as an automatic test system pin receiver. It is also useful in a wide variety of analog threshold detector and window comparator applications. CMP100 has two reference inputs and one analog input which is common to both comparators. All inputs .

CMP100 Features

* q PROPAGATION DELAY: 5ns max, 100mV Overdrive q COMMON MODE INPUT RANGE: ±12V q INPUT IMPEDANCE: 120kΩ || 2pF q OUTPUTS: Latchable, 10k ECL Compatible q COMPLETE: No External Parts Required q TEMPERATURE RANGE:

* 25°C to +85°C q PACKAGES: 16-Pin Plastic DIP, 16-Lead Plastic SOIC VREF 1 11 An

CMP100-Burr-Brown.pdf

This datasheet PDF includes multiple part numbers: CMP100, CMP100-Burr. Please refer to the document for exact specifications by model.

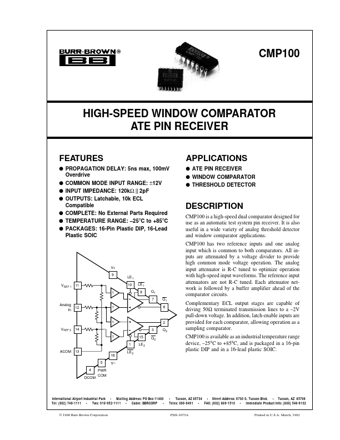

CMP100 Datasheet Preview Page 2 CMP100 Datasheet Preview Page 3

Datasheet Details

Part number:

CMP100, CMP100-Burr

Manufacturer:

Burr-Brown

File Size:

149.91 KB

Description:

High-speed window comparator ate pin receiver.

Note:

This datasheet PDF includes multiple part numbers: CMP100, CMP100-Burr.
Please refer to the document for exact specifications by model.
