CMP1404 - N-Channel Enhancement Mode Field Effect Transistor

Cmos

📥 Download Datasheet

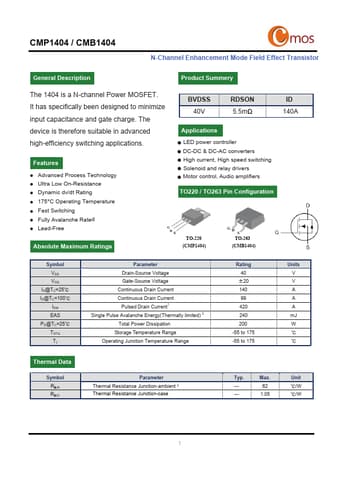

CMP1404 Datasheet Preview — Preview of CMP1404 PDF

Datasheet Details

Part number: CMP1404
Manufacturer: Cmos
File Size: 0.98 MB
Datasheet: CMP1404-Cmos.pdf
Description: N-Channel Enhancement Mode Field Effect Transistor

CMP1404 Product details

Description

Product Summery The 1404 is a N-channel Power MOSFET.It has specifically been designed to minimize input capacitance and gate charge.The BVDSS 40V RDSON 5.5m device is therefore suitable in advanced Applications high-efficiency switching applications.

Features

Advanced Process Technology Ultra Low On-Resistance Dynamic dv/dt Rating 175°C Operating Temperature Fast Switching Fully Avalanche Rated Lead-Free Absolute Maximum Ratings LED power controller DC-DC & DC-AC converters High current, High speed switching Solenoid and relay drivers Motor control, Audio amplifiers TO220 / TO263 Pin Configuration G DS TO-220 (CMP1404) GD S TO-263 (CMB1404) ID 140A Symbol VDS VGS ID@TC=25 ID@TC=100 IDM EAS PD@TC=25 TSTG TJ Parameter Drain-Source Voltage Gate-So.
