OPA2607

Dual / High Output / Current-Feedback OPERATIONAL AMPLIFIER

OPA2607 Features

* q WIDEBAND ±12V OPERATION: 25MHz (G = +8) q UNITY GAIN STABLE: 35MHz (G = +1) q q q q q q q HIGH OUTPUT CURRENT: 250mA OUTPUT VOLTAGE SWING: ±10.5V (VS = ±12V) HIGH SLEW RATE: 600V/µs LOW SUPPLY CURRENT: 8mA/channel FLEXIBLE POWER CONTROL (SO-14) ±6V TO ±16V SUPPLY RANGE POWER PACKAGING DESCRIPTION

OPA2607 General Description

The OPA2607 provides a high output voltage swing and low distortion required for low turns ratio ADSL upstream driver applications. Operating on a ±12V supply, the OPA2607 consumes a low 8.0mA/channel quiescent current to deliver a very high 250mA peak output current. Guaranteed output current of 18.

OPA2607 Datasheet (174.27 KB)

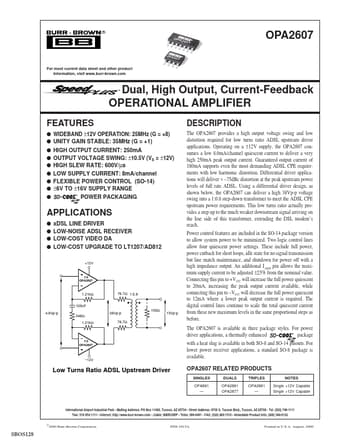

Preview of OPA2607 PDF

Datasheet Details

Part number:

OPA2607

Manufacturer:

Burr-Brown

File Size:

174.27 KB

Description:

Dual / high output / current-feedback operational amplifier.
® OPA 260 7 OPA2607 OPA 260 7 For most current data sheet and other product information, visit www.burr-brown.com Dual, High Output, Current-Fee.
