OPA2634

Dual / Wideband / Single-Supply OPERATIONAL AMPLIFIER

OPA2634 Features

* q q q q q q q HIGH BANDWIDTH: 150MHz (G = +2) +3V AND +5V OPERATION INPUT RANGE INCLUDES GROUND 4.8V OUTPUT SWING ON +5V SUPPLY HIGH OUTPUT CURRENT: 80mA HIGH SLEW RATE: 250V/µs LOW INPUT VOLTAGE NOISE: 5.6nV/√HZ DESCRIPTION The OPA2634 is a dual, low power, voltage-feedback, high-speed operational

OPA2634 General Description

The OPA2634 is a dual, low power, voltage-feedback, high-speed operational amplifier designed to operate on +3V or +5V single-supply voltage. Operation on ±5V or +10V supplies is also supported. The input range extends below ground and to within 1.2V of the positive supply. Using complementary commo.

OPA2634 Datasheet (143.62 KB)

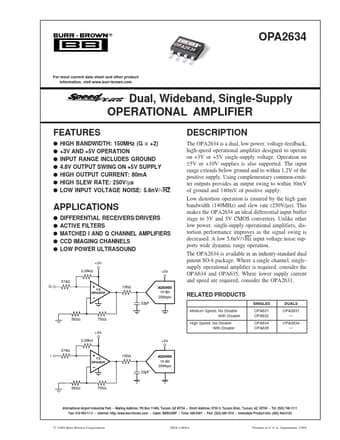

Preview of OPA2634 PDF

Datasheet Details

Part number:

OPA2634

Manufacturer:

Burr-Brown

File Size:

143.62 KB

Description:

Dual / wideband / single-supply operational amplifier.
® OPA OPA2634 263 4 For most current data sheet and other product information, visit www.burr-brown.com Dual, Wideband, Single-Supply OPERATIONAL .
