OPA404 Datasheet - Burr-Brown

Quad High-Speed Precision Difet OPERATIONAL AMPLIFIER

OPA404 Features

* q WIDE BANDWIDTH: 6.4MHz q HIGH SLEW RATE: 35V/µs q LOW OFFSET: ±750µV max q LOW BIAS CURRENT: ±4pA max q LOW SETTLING: 1.5µs to 0.01% q STANDARD QUAD PINOUT APPLICATIONS q PRECISION INSTRUMENTATION q q q q q OPTOELECTRONICS SONAR, ULTRASOUND PROFESSIONAL AUDIO EQUIPMENT MEDICAL EQUIPMENT DETECTOR

OPA404 General Description

The OPA404 is a high performance monolithic Difet ®(dielectrically-isolated FET) quad operational amplifier. It offers an unusual combination of verylow bias current together with wide bandwidth and fast slew rate. Noise, bias current, voltage offset, drift, and speed are superior to BIFET® amplifie.

OPA404 Datasheet (228.35 KB)

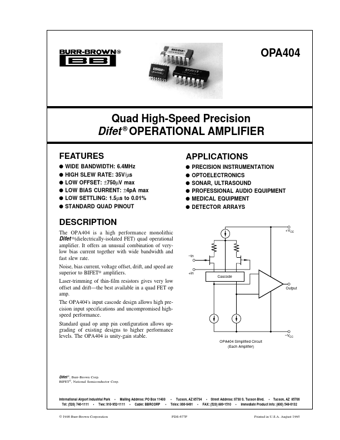

OPA404 Datasheet Preview — Preview of OPA404 PDF

Datasheet Details

Part number:

OPA404

Manufacturer:

Burr-Brown

File Size:

228.35 KB

Description:

Quad high-speed precision difet operational amplifier.
