OPA4132, OPA132 Datasheet - Texas Instruments

OPA4132 High-Speed FET-Input Operational Amplifiers

The OPA132, OPA2132, and OPA4132 (OPAx132) series of FET-input operational amplifiers provides high speed and excellent dc performance. The combination of high slew rate and wide bandwidth provide fast settling time. The single, dual, and quad versions have identical specifications for maximum desi.

OPA4132 Features

* A newer version of this device is now available: OPA2156

* FET input: IB = 50pA Maximum

* Wide bandwidth: 8MHz

* High slew rate: 20V/µs

* Low noise: 8nV/√Hz (1kHz)

* Low distortion: 0.00008%

* High open-loop gain: 126dB (2kΩ load)

* W

OPA132-etcTI.pdf

This datasheet PDF includes multiple part numbers: OPA4132, OPA132. Please refer to the document for exact specifications by model.

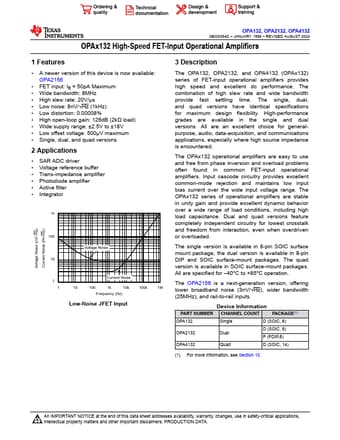

OPA4132 Datasheet Preview Page 2 OPA4132 Datasheet Preview Page 3

Datasheet Details

Part number:

OPA4132, OPA132

Manufacturer:

Texas Instruments ↗

File Size:

1.31 MB

Description:

High-speed fet-input operational amplifiers.

Note:

This datasheet PDF includes multiple part numbers: OPA4132, OPA132.
Please refer to the document for exact specifications by model.
