OPA602, OPA602_Burr Datasheet - Burr-Brown

OPA602 High-Speed Precision Difet OPERATIONAL AMPLIFIER

The OPA602 is a precision, wide bandwidth FET operational amplifier. Monolithic Difet (dielectrically isolated FET) construction provides an unusual combination of high speed and accuracy. Its wide-bandwidth design minimizes dynamic errors. High slew rate and fast settling time allow accurate signal.

OPA602 Features

* q q q q q q WIDE BANDWIDTH: 6.5MHz HIGH SLEW RATE: 35V/µs LOW OFFSET: ±250µV max LOW BIAS CURRENT: ±1pA max FAST SETTLING TIME: 1µs to 0.01% UNITY-GAIN STABLE APPLICATIONS q q q q q q PRECISION INSTRUMENTATION OPTOELECTRONICS SONAR, ULTRASOUND PROFESSIONAL AUDIO EQUIPMENT MEDICAL EQUIPMENT DATA CON

OPA602_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: OPA602, OPA602_Burr. Please refer to the document for exact specifications by model.

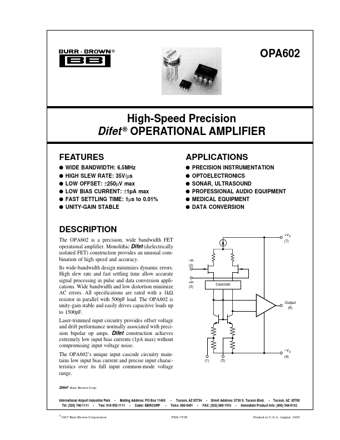

OPA602 Datasheet Preview Page 2 OPA602 Datasheet Preview Page 3

Datasheet Details

Part number:

OPA602, OPA602_Burr

Manufacturer:

Burr-Brown

File Size:

150.83 KB

Description:

High-speed precision difet operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: OPA602, OPA602_Burr.
Please refer to the document for exact specifications by model.
