OPA615, OPA615-Burr DC Restoration Circuit

OPA615 Description

BurrĆBrown Products from Texas Instruments OPA615 SBOS299B * FEBRUARY 2004 * REVISED JULY 2005 Wide-Bandwidth, DC Restoration Circui.
The OPA615 is a complete subsystem for very fast and precise DC restoration, offset clamping, and low-frequency hum suppression of wideband amplifiers.

OPA615 Features

* PROPAGATION DELAY: 1.9ns
* BANDWIDTH: OTA: 710MHz Comparator: 730MHz
* LOW INPUT BIAS CURRENT: ±1µA
* SAMPLE-AND-HOLD SWITCHING TRANSIENTS: ±5mV
* SAMPLE-AND-HOLD FEEDTHROUGH REJECTION: 100dB
* CHARGE INJECTION: 40fC
* HOLD COMMAND DELAY TIME

OPA615 Applications

* BROADCAST/HDTV EQUIPMENT
* TELECOMMUNICATIONS EQUIPMENT
* HIGH-SPEED DATA ACQUISITION
* CAD MONITORS/CCD IMAGE PROCESSING
* NANOSECOND PULSE INTEGRATOR/PEAK DETECTOR
* PULSE CODE MODULATOR/DEMODULATOR
* COMPLETE VIDEO DC LEVEL RESTORATION

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA615, OPA615-Burr. Please refer to the document for exact specifications by model.

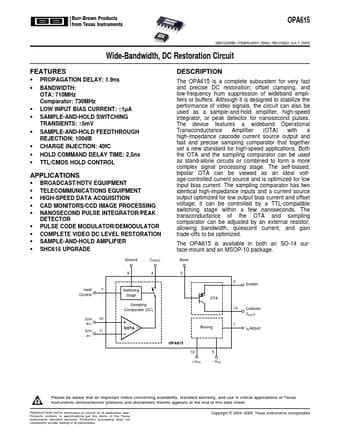

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA615, OPA615-Burr
Manufacturer
Burr-Brown
File Size
621.72 KB
Datasheet
OPA615-Burr-Brown.pdf
Description
DC Restoration Circuit
Note
This datasheet PDF includes multiple part numbers: OPA615, OPA615-Burr.
Please refer to the document for exact specifications by model.
