OPA622 Datasheet, Amplifier, Burr-Brown

OPA622 Features

  • Amplifier q LARGE SIGNAL BANDWIDTH: 150MHz (AP), 200MHz (AU) (Voltage-Feedback) q HIGH OUTPUT CURRENT: ±70mA q SLEW RATE: 1500V/µs (AP), 1700V/µs (AU) q DIFFERENTIAL GAIN: 0.15% q DIFFERENTIAL PH

PDF File Details

Part number:

OPA622

Manufacturer:

Burr-Brown

File Size:

348.58kb

Download:

📄 Datasheet

Description:

Wide-bandwidth operational amplifier. The OPA622 is a monolithic amplifier component designed for precision wide-bandwidth systems including high-resolution video, RF and

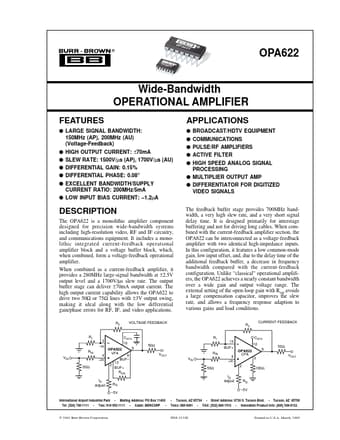

Datasheet Preview: OPA622 📥 Download PDF (348.58kb)
Page 2 of OPA622 Page 3 of OPA622

OPA622 Application

  • Applications APPLICATIONS q BROADCAST/HDTV EQUIPMENT q COMMUNICATIONS q PULSE/RF AMPLIFIERS q ACTIVE FILTER q HIGH SPEED ANALOG SIGNAL PROCESSING

TAGS

OPA622
Wide-Bandwidth
OPERATIONAL
AMPLIFIER
Burr-Brown
