Description

TLV3011 TLV3012 SBOS300B * FEBRUARY 2004 * REVISED JUNE 2004 Nanopower, 1.8V, SOT23 Comparator with Voltage Reference .
The TLV3011 is a low-power, open-drain output comparator; the TLV3012 is a push-pull output comparator.

📥 Download Datasheet

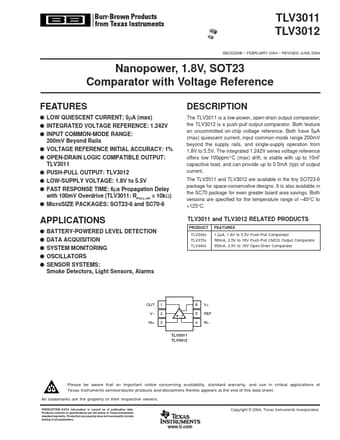

TLV3012 Datasheet Preview — This datasheet PDF includes multiple part numbers: TLV3012, TLV3011-Burr. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: TLV3012, TLV3011-Burr
Manufacturer: Burr-Brown
File Size: 1.06 MB
Datasheet: TLV3011-Burr-Brown.pdf
Description: SOT23 Comparator
Note: This datasheet PDF includes multiple part numbers: TLV3012, TLV3011-Burr.
Please refer to the document for exact specifications by model.

Features

* q LOW QUIESCENT CURRENT: 5µA (max) q INTEGRATED VOLTAGE REFERENCE: 1.242V q INPUT COMMON-MODE RANGE: 200mV Beyond Rails q VOLTAGE REFERENCE INITIAL ACCURACY: 1% q OPEN-DRAIN LOGIC COMPATIBLE OUTPUT: TLV3011 q PUSH-PULL OUTPUT: TLV3012 q LOW-SUPPLY VOLTAGE: 1.8V to 5.5V q FAST RESPONSE TIME: 6µs Prop
