TLV320AIC32, TLV320AIC32_Burr - LOW POWER STEREO AUDIO CODEC

TLV320AIC32 Description

www.DataSheet4U.com BurrĆBrown Products from Texas Instruments TLV320AIC32 SLAS479A * AUGUST 2005 * REVISED SEPTEMBER 2005 LOW POWE.
The TLV320AIC32 is a low-power stereo-audio codec with a stereo headphone amplifier, as well as multiple inputs and outputs, programmable in single-en.

TLV320AIC32 Features

* Stereo Audio DAC
* 100 dB A Signal-to-Noise Ratio
* 16/20/24/32-Bit Data
* Supports Rates From 8 kHz to 96 kHz
* 3D/Bass/Treble/EQ/De-Emphasis Effects Stereo Audio ADC
* 92 dB A Signal-to-Noise Ratio
* Supports Rates From 8 kHz to 96 kHz Six

TLV320AIC32 Applications

* The record path of the TLV320AIC32 contains integrated microphone bias, digitally-controlled stereo-microphone pre-amp, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. The playback path includes mix/mux capability from the stereo DAC and selected inputs,

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TLV320AIC32, TLV320AIC32_Burr. Please refer to the document for exact specifications by model.

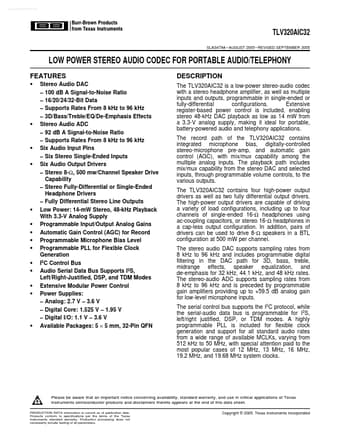

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TLV320AIC32, TLV320AIC32_Burr
Manufacturer
Burr-Brown
File Size
4.36 MB
Datasheet
TLV320AIC32_Burr-Brown.pdf
Description
LOW POWER STEREO AUDIO CODEC
Note
This datasheet PDF includes multiple part numbers: TLV320AIC32, TLV320AIC32_Burr.
Please refer to the document for exact specifications by model.
