TLV320AIC3204 Datasheet - Texas Instruments

TLV320AIC3204 - Ultra Low Power Stereo Audio Codec

The TLV320AIC3204 (also called the AIC3204) is a flexible, low-power, low-voltage stereo audio codec with programmable inputs and outputs, PowerTune capabilities, fixed predefined and parameterizable signal-processing blocks, integrated PLL, integrated LDOs and flexible digital interfaces.

Device I

TLV320AIC3204 Features

* 1 Stereo Audio DAC with 100dB SNR

* 4.1mW Stereo 48ksps DAC Playback

* Stereo Audio ADC with 93dB SNR

* 6.1mW Stereo 48ksps ADC Record

* PowerTuneâ„¢

* Extensive Signal Processing Options

* Six Single-Ended or 3 Fully-Differential Analog Inputs

TLV320AIC3204-etcTI.pdf

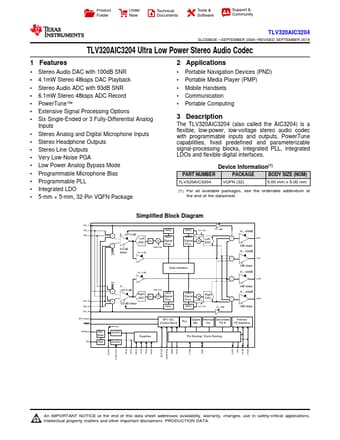

Preview of TLV320AIC3204 PDF
TLV320AIC3204 Datasheet Preview Page 2 TLV320AIC3204 Datasheet Preview Page 3

Datasheet Details

Part number:

TLV320AIC3204

Manufacturer:

Texas Instruments ↗

File Size:

1.91 MB

Description:

Ultra low power stereo audio codec.
