SRC4184, SRC4184_Burr 4-Channel / Asynchronous Sample Rate Converter

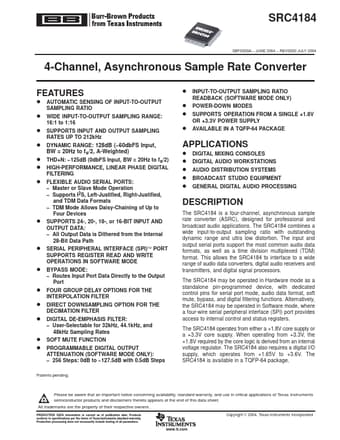

📥 Download Datasheet  Datasheet Preview Page 1

Description

SRC4184 SBFS026A * JUNE 2004 * REVISED JULY 2004 4-Channel, Asynchronous Sample Rate Converter .
The SRC4184 is a four-channel, asynchronous sample rate converter (ASRC), designed for professional and broadcast audio applications.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SRC4184, SRC4184_Burr. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SRC4184, SRC4184_Burr
Manufacturer
Burr-Brownoration
File Size
625.43 KB
Datasheet
SRC4184_Burr-BrownCorporation.pdf
Description
4-Channel / Asynchronous Sample Rate Converter
Note
This datasheet PDF includes multiple part numbers: SRC4184, SRC4184_Burr.
Please refer to the document for exact specifications by model.

Features

* D D D D D D D AUTOMATIC SENSING OF INPUT-TO-OUTPUT SAMPLING RATIO WIDE INPUT-TO-OUTPUT SAMPLING RANGE: 16:1 to 1:16 SUPPORTS INPUT AND OUTPUT SAMPLING RATES UP TO 212kHz DYNAMIC RANGE: 128dB (
* 60dbFS Input, D D D D D D D D D INPUT-TO-OUTPUT SAMPLING RATIO READBACK (SOFTWARE MODE ONLY) POWE

Applications

* DIGITAL MIXING CONSOLES DIGITAL AUDIO WORKSTATIONS AUDIO DISTRIBUTION SYSTEMS BROADCAST STUDIO EQUIPMENT GENERAL DIGITAL AUDIO PROCESSING BW = 20Hz to fs/2, A-Weighted) THD+N:
* 125dB (0dbFS Input, BW = 20Hz to fs/2) HIGH-PERFORMANCE, LINEAR PHASE DIGITAL FILTERING FLEXIBLE AUDIO SERIAL PORT
