SRC4192, SRC, 192kHz Stereo Asynchronous Sample Rate Converters

SRC 419 2 SRC 419 3 SRC4192(1) SRC4193(1) SBFS022A * JULY 2003 192kHz Stereo Asynchronous Sample Rate Converters .
The SRC4192 and SRC4193 are asynchronous sample rate converters designed for professional and broadcast audio applications.

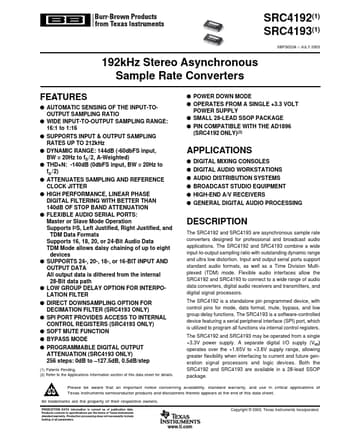

datasheet Preview Page 1 from Datasheet4u.com

SRC-4192.pdf

SRC4192 Datasheet Preview — This datasheet PDF includes multiple part numbers: SRC4192, SRC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SRC4192, SRC

Manufacturer:

Burr-Brownoration

File Size:

1.01 MB

Description:

192kHz Stereo Asynchronous Sample Rate Converters

Note:

This datasheet PDF includes multiple part numbers: SRC4192, SRC.
Please refer to the document for exact specifications by model.

Features

* q AUTOMATIC SENSING OF THE INPUT-TOOUTPUT SAMPLING RATIO q WIDE INPUT-TO-OUTPUT SAMPLING RANGE: 16:1 to 1:16 q SUPPORTS INPUT & OUTPUT SAMPLING RATES UP TO 212kHz q DYNAMIC RANGE: 144dB (-60dbFS input, BW = 20Hz to fS /2, A-Weighted) q THD+N: -140dB (0dbFS input, BW = 20Hz to fS /2) q ATTENUATES SAM

Applications

* Information section of this data sheet for details. q POWER DOWN MODE q OPERATES FROM A SINGLE +3.3 VOLT POWER SUPPLY q SMALL 28-LEAD SSOP PACKAGE q PIN COMPATIBLE WITH THE AD1896 (SRC4192 ONLY)(2) APPLICATIONS q q q q q q DIGITAL MIXING CONSOLES DIGITAL AUDIO WORKSTATIONS AUDIO DISTRIBUTION SYSTE
