JJS-60V Datasheet - Bussmann

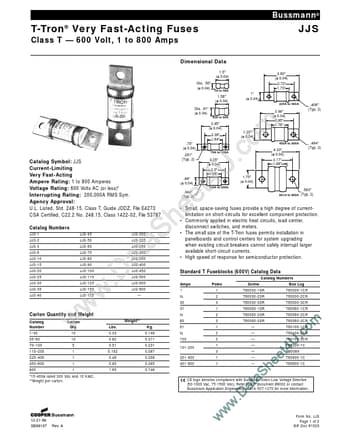

JJS-60V T-Tron Very Fast Acting Fuses

Bussmann® T-Tron® Very Fast-Acting Fuses Class T 600 Volt, 1 to 800 Amps Dimensional Data 1.5" (± 0.04) Dia. .56" (± 0.04) 3.63" (± 0.04) 2.72" 1.73" 1" (± 0.04) JJS 1A to 30A 1.56" (± 0.04) Dia. .81" (± 0.04) 35A to 60A 225A to 400A 2.95" (± 0.04) 2.36" 1.64" .75" (± 0.04) Catalog Symbol: JJS Current-Limiting Very Fast-Acting Ampere Rating: 1 to 800 Amperes Voltage Rating: 600 Volts AC (or less) Interrupting Rating: 200,000A RMS Sym. Agency Approval: U.L. Listed, Std. 248-.

JJS-60V Datasheet (179.52 KB)
