JJS-xxx, JJS-60V Datasheet - Bussmann

JJS-xxx - T-Tron Very Fast Acting Fuses

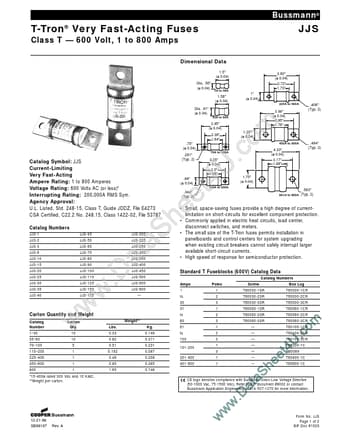

Bussmann® T-Tron® Very Fast-Acting Fuses Class T 600 Volt, 1 to 800 Amps Dimensional Data 1.5" (± 0.04) Dia.

.56" (± 0.04) 3.63" (± 0.04) 2.72" 1.73" 1" (± 0.04) JJS 1A to 30A 1.56" (± 0.04) Dia.

.81" (± 0.04) 35A to 60A 225A to 400A 2.95" (± 0.04) 2.36" 1.64" .75" (± 0.04) Catalog Symbol: JJS Current-Limiting Very Fast-Acting Ampere Rating: 1 to 800 Amperes Voltage Rating: 600 Volts AC (or less) Interrupting Rating: 200,000A RMS Sym.

Agency Approval: U.L.

Listed, Std.

248-

JJS-60V_Bussmann.pdf

This datasheet PDF includes multiple part numbers: JJS-xxx, JJS-60V. Please refer to the document for exact specifications by model.
JJS-xxx Datasheet Preview Page 2

Datasheet Details

Part number:

JJS-xxx, JJS-60V

Manufacturer:

Bussmann

File Size:

179.52 KB

Description:

T-tron very fast acting fuses.

Note:

This datasheet PDF includes multiple part numbers: JJS-xxx, JJS-60V.
Please refer to the document for exact specifications by model.
