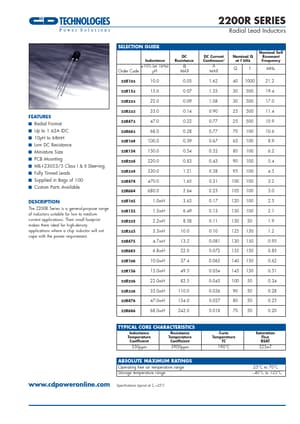

22R684, 22R103 Radial Lead Inductors

2200R SERIES Radial Lead Inductors .
The 2200R Series is a general-purpose range of inductors suitable for low to medium current applications.

22R103-CDTechnologies.pdf

22R684 Datasheet Preview — This datasheet PDF includes multiple part numbers: 22R684, 22R103. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

22R684, 22R103

Manufacturer:

C&DTechnologies

File Size:

86.09 KB

Description:

Radial Lead Inductors

Note:

This datasheet PDF includes multiple part numbers: 22R684, 22R103.
Please refer to the document for exact specifications by model.

Features

* Radial Format
* Up to 1.62A IDC
* 10µH to 68mH
* Low DC Resistance
* Miniature Size
* PCB Mounting
* MIL-I-23053/5 Class I & II Sleeving
* Fully Tinned Leads
* Supplied in Bags of 100

Applications

* Their small footprint makes them ideal for high-density applications where a chip inductor will not cope with the power requirement. SELECTION GUIDE Inductance ±10% (at 1kHz) Order Code µH DC Resistance Ω MAX 22R103 10.0 0.05 22R153 15.0 0.07 22R223 22.0 0.09 22R333 33.0 0.14 22R
