22R684C Radial Lead Inductors

The 2200R Series is a general purpose range of inductors suitable for low to medium current applications. Their small footprint makes them ideal for high density applications where a chip inductor will not cope with the power requirement. SELECTION GUIDE Order Code 22R103C 22R153C 22R223C 22R333C .

22R684C Features

* RoHS compliant

* Radial format

* Up to 1.62A IDC

* 10μH to 68mH

* Low DC resistance

* Miniature size

* PCB mounting

* MIL-I-23053/5 class I sleeving

* Fully tinned leads

* Supplied in bags of 100

* Compatible w

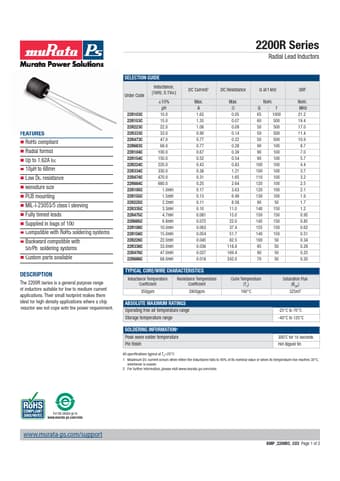

22R103C-muRata.pdf

22R684C Datasheet Preview — This datasheet PDF includes multiple part numbers: 22R684C, 22R103C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

22R684C, 22R103C

Manufacturer:

muRata

File Size:

143.34 KB

Description:

Radial lead inductors.

Note:

This datasheet PDF includes multiple part numbers: 22R684C, 22R103C.
Please refer to the document for exact specifications by model.
