PTS645-TR - 6mm Radial Tact Switches

Datasheet Summary

Features

  • Benefits.
  • Radial taping.
  • Thru-hole or vertical actuation.
  • From 130 to 260 grams actuation force.
  • RoHS compliant and compatible Typical.

📥 Download Datasheet

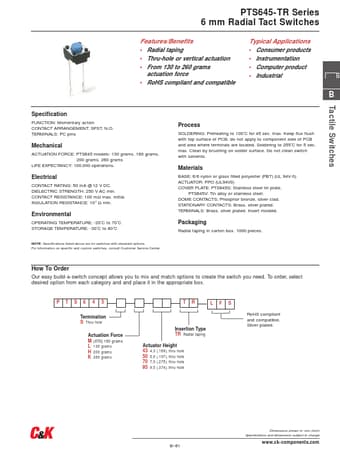

Datasheet preview – PTS645-TR

Datasheet Details

Part number PTS645-TR
Manufacturer C&K
File Size 54.34 KB
Description 6mm Radial Tact Switches
Datasheet download datasheet PTS645-TR Datasheet
Additional preview pages of the PTS645-TR datasheet.

📁 Similar Datasheet

  • PTS645 - Tact Switches (ITT Industries)
  • PTS635 - 3.5 mm Tact Switches (ITT Industries)
  • PTS0603 - Film Chip Resistor (Vishay)
  • PTS0805 - Film Chip Resistor (Vishay)
  • PTS0805M - Platinum SMD Flat Chip Temperature Sensor (Vishay)
  • PTS1206 - 6-60 Volt DC surface mount resettable PTC (Cooper)
  • PTS1206 - Film Chip Resistor (Vishay)
  • PTS1206 - 6-60 Volt DC surface mount resettable PTC (EATON)
  • PTS120615V050 - surface mount resettable PTC (Cooper)
  • PTS120616V025 - surface mount resettable PTC (Cooper)
Other Datasheets by C&K
  • PTS645 - 6mm Tact Switches
  • PTS645V - 6mm SMT Side Actuated Tact Switch

Full PDF Text Transcription

Click to expand full text
Tactile Switches PTS645-TR Series 6 mm Radial Tact Switches Features/Benefits • Radial taping • Thru-hole or vertical actuation • From 130 to 260 grams actuation force • RoHS compliant and compatible Typical Applications • Consumer products • Instrumentation • Computer product • Industrial B Specification FUNCTION: Momentary action CONTACT ARRANGEMENT: SPST, N.O. TERMINALS: PC pins Mechanical ACTUATION FORCE: PTS645 models: 130 grams, 160 grams, 200 grams, 260 grams LIFE EXPECTANCY: 100,000 operations. Electrical CONTACT RATING: 50 mA @ 12 V DC. DIELECTRIC STRENGTH: 250 V AC min. CONTACT RESISTANCE: 100 mΩ max. initial. INSULATION RESISTANCE: 1011 Ω min.
