PTS0805

Film Chip Resistor

Vishay

PTS0805 Features

* Standardized characteristics according to IEC 60751

* Advanced thin film technology

* Short reaction times down to t0.9  2 s (in air)

* Outstanding stability of temperature characteristic

* Supports lead (Pb)-free soldering

* Material categorizatio

PTS0805 General Description

PTS 0603 PTS 0805 PTS 1206 Resistance values R0 at 0 °C Temperature coefficient (0 °C to +100 °C), IEC60751 100  100 , 500  +3850 ppm/K 100 , 500 , 1000  Tolerance classes F0.3, F0.6 Operating temperature range -55 °C to +155 °C Long term stability R0/R0; R0 change after 1000 h a.

PTS0805 Datasheet (114.75 KB)

PTS0805 Datasheet Preview — Preview of PTS0805 PDF

Datasheet Details

Part number:

PTS0805

Manufacturer:

Vishay ↗

File Size:

114.75 KB

Description:

Film chip resistor.

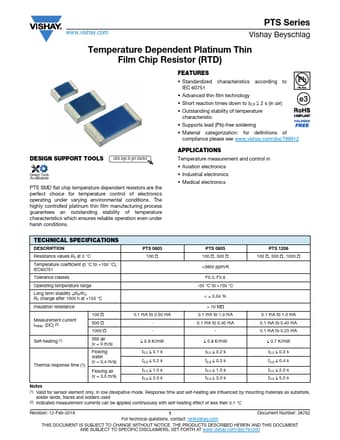

www.vishay.com PTS Series Vishay Beyschlag Temperature Dependent Platinum Thin Film Chip Resistor (RTD) DESIGN SUPPORT TOOLS click logo to get star.
