PTS1206M - Platinum SMD Flat Chip Temperature Sensor

This page provides the datasheet information for the PTS1206M, a member of the PTS0805M Platinum SMD Flat Chip Temperature Sensor family.

Datasheet Summary

Description

PTS0805M PTS1206M Resistance values R0 at 0 °C 100 , 500  100 , 500 , 1000  Temperature coefficient (0 °C to +100 °C) +3850 ppm/K Tolerance classes F0.3, F0.6 Temperature range -55 °C to +175 °C Long term stability |R0/R0|; R0 change after 1000 h at +155 °C Insulation resistance

Features

  • Standardized characteristics according to IEC 60751.
  • AEC-Q200 qualified.
  • Short reaction times down to t0.9  3 s (in air).
  • Outstanding stability of temperature characteristic.
  • Superior temperature cycling robustness.
  • Material categorization: for definitions of compliance please see www. vishay. com/doc?99912.

📥 Download Datasheet

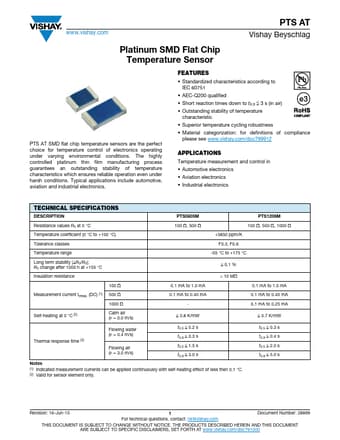

Datasheet preview – PTS1206M

Datasheet Details

Part number PTS1206M
Manufacturer Vishay
File Size 93.71 KB
Description Platinum SMD Flat Chip Temperature Sensor
Datasheet download datasheet PTS1206M Datasheet
Additional preview pages of the PTS1206M datasheet.

📁 Similar Datasheet

Other Datasheets by Vishay

Full PDF Text Transcription

Click to expand full text
www.vishay.com PTS AT Vishay Beyschlag Platinum SMD Flat Chip Temperature Sensor PTS AT SMD flat chip temperature sensors are the perfect choice for temperature control of electronics operating under varying environmental conditions. The highly controlled platinum thin film manufacturing process guarantees an outstanding stability of temperature characteristics which ensures reliable operation even under harsh conditions. Typical applications include automotive, aviation and industrial electronics. FEATURES • Standardized characteristics according to IEC 60751 • AEC-Q200 qualified • Short reaction times down to t0.
