RTM1760

Remote Terminal

RTM1760 Features

* ›› Selectable MIL-STD-1553B or MIL-STD-1760 operation ›› Stand alone remote terminal with memory ›› Low power +5 volt operation ›› Dual redundant operation ›› CMOS Bus Transceivers and Protocol ›› Simple processor interface ›› Selectable autonomous wraparound ›› Hardware checksum gene

RTM1760 General Description

The RTS/RTM1760 is a complete dual redundant MIL-STD1760 or MIL-STD-1553B Remote Terminal in a single small outline package. It is also capable of meeting the McAir response time requirements and the optional handling of modecode descriptor 31 as a normal subaddress. The mode of operation is selecta.

RTM1760 Datasheet (478.79 KB)

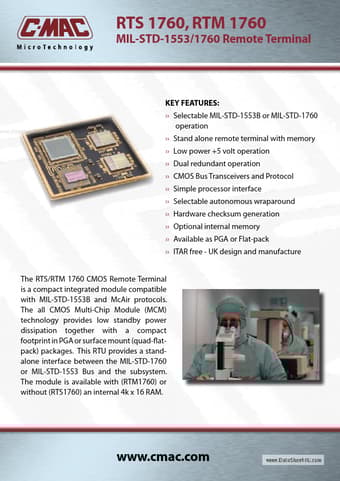

Preview of RTM1760 PDF

Datasheet Details

Part number:

RTM1760

Manufacturer:

C-MAC

File Size:

478.79 KB

Description:

Remote terminal.
