RTM560-266R - Clock Generator

Name: RTM560-266R
SKU: RTM560-266R-963186

RealTek

Datasheet Details

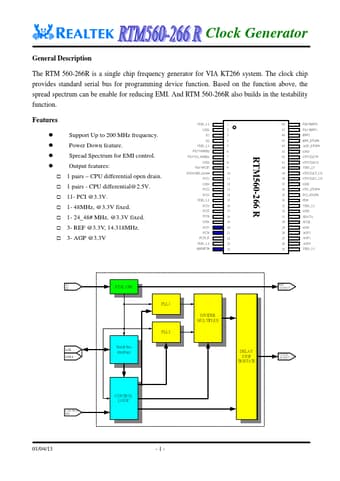

The RTM 560-266R is a single chip frequency generator for VIA KT266 system.

! Support Up to 200 MHz frequency. ! Power Down feature. ! Spread Spectrum for EMI control. ! Output features: " 1 pairs.
CPU differential open drain. " 1 pairs - CPU differential@2.5V. " 11- PCI @3.3V. " 1- 48MHz, @3.3V fixed. " 1- 24_48# MHz, @3.3V fixed. " 3- REF @3.3V, 14.318MHz. " 3- AGP @3.3V VDD_3.3 GND X1 X2 VDD_3.3 FS2.
/48MHz FS3.
/24_48MHz GND FS4.
/PCIF PCI0/.
SEL24/48# PCI1 GND PCI2 PCI3 VDD_3.3 PCI4 PCI5 PCI6 GND PCI7 PCI8 PCI9_E VDD_3.3 SRESET# 1 2 3 4 5 6 7.
