RTM876-660 - 56 pin single-chip frequency generator

REALTEK

The RTM876-660 by REALTEK is a 56 pin single-chip frequency generator. Below is the official datasheet preview.

📥 Download Datasheet

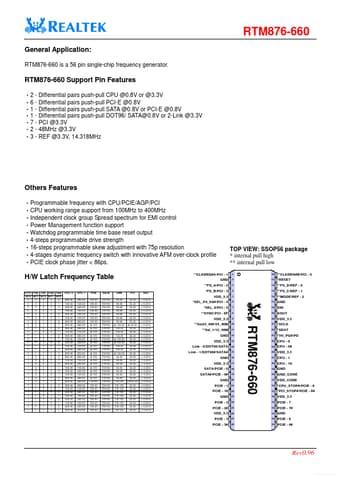

RTM876-660 56 pin single-chip frequency generator by REALTEK - Datasheet Preview — Official preview page of the **RTM876-660** 56 pin single-chip frequency generator datasheet (REALTEK).

Datasheet Details

Part number	RTM876-660
Manufacturer	REALTEK
File Size	246.46 KB
Description	56 pin single-chip frequency generator
Datasheet	RTM876-660_REALTEK.pdf
Additional preview pages of the RTM876-660 datasheet.

RTM876-660 Product details

Description

Note : ( ) Internal 120K pull-up resistors present, ( ) Internal 120K pull-down resistors present, [#] mean active when pull low. CLKREQ#A GND FS_A PCI - 2 FS_B PCI - 3 VDD_3.3 SEL_P4_K8# PCI - 4 SEL_0 PCI - 5 PCI 6F SYNC VDD_3.3 Internal Pull Type O I G I O I O P I O I O O I P Description 3.3V 33MHz PCI output.3.3V LVTTL CLKREQ function selection pin for PCIE7/6(SELECT by CR02[7],CR2

Features

2 - Differential pairs push-pull CPU @0.8V or @3.3V.
6 - Differential pairs push-pull PCI-E @0.8V.
1 - Differential pairs push-pull SATA @0.8V or PCI-E @0.8V.
1 - Differential pairs push-pull DOT96/ SATA@0.8V or 2-Link @3.3V.
7 - PCI @3.3V.
2 - 48MHz @3.3V.
3 - REF @3.3V, 14.318MHz Others Features.
Programmable frequency with CPU/PCIE/AGP/PCI.
CPU working range support from 100MHz to 400MHz.
Independent clock group.
