CM108B, CM108B-C Datasheet - C-Media

CM108B A Highly Integrated USB Audio Single Chip

The CM108B is a highly integrated crystal-free USB audio single chip solution optimized for USB headset, headphone, and dongle applications. The CM108B comes with software driver interface which supports XearTM sound effects for multimedia entertainments. All essential analog modules are embedded in.

CM108B Features

* are programmable with jumper pins or by external EEPROM. Audio adjustments are easily controlled via specific HID-compliant volume control pins. An external codec or audio DSP can be connected to the CM108B via I2S pin for further processing. Vendors can customize unique USB VID/PID/Product String/M

CM108B-C-Media.pdf

This datasheet PDF includes multiple part numbers: CM108B, CM108B-C. Please refer to the document for exact specifications by model.

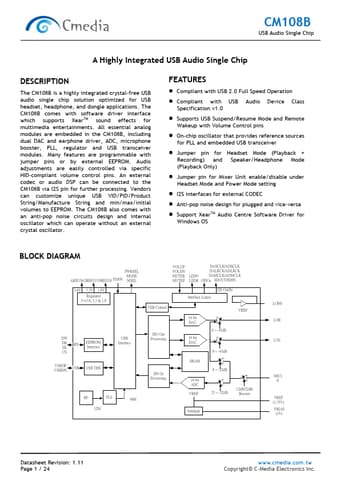

CM108B Datasheet Preview Page 2 CM108B Datasheet Preview Page 3

Datasheet Details

Part number:

CM108B, CM108B-C

Manufacturer:

C-Media

File Size:

412.62 KB

Description:

A highly integrated usb audio single chip.

Note:

This datasheet PDF includes multiple part numbers: CM108B, CM108B-C.
Please refer to the document for exact specifications by model.
