CM1000DXL-24S - IGBT

📥 Download Datasheet

Datasheet preview – CM1000DXL-24S

Datasheet Details

Part number CM1000DXL-24S
Manufacturer Mitsubishi
File Size 567.17 KB
Description IGBT
Datasheet download datasheet CM1000DXL-24S Datasheet
Additional preview pages of the CM1000DXL-24S datasheet.

📁 Similar Datasheet

  • CM1000DU-34NF - IGBT Module (Mitsubishi Electric)
  • CM1000 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (Pan Jit International Inc.)
  • CM1000 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • CM1000HA-24H - IGBT Module (Mitsubishi Electric Semiconductor)
  • CM1000HA-24H - IGBT Module (Powerex Power Semiconductors)
  • CM1000HA-28H - IGBT Module (Mitsubishi Electric Semiconductor)
  • CM1000HA-28H - IGBT Module (Powerex Power Semiconductors)
  • CM1001 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (Pan Jit International Inc.)
  • CM1001 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (TRSYS)
  • CM1001-7R - 50 Watt DC-DC Converters (Power-One)
Other Datasheets by Mitsubishi

Full PDF Text Transcription

Click to expand full text

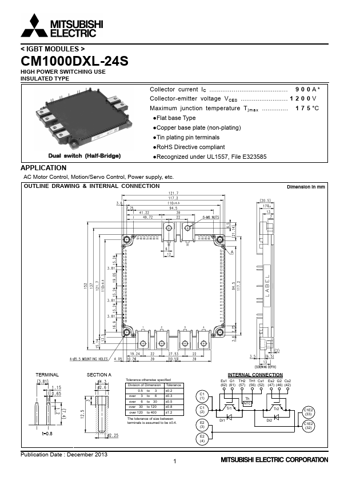

< IGBT MODULES > CM1000DXL-24S HIGH POWER SWITCHING USE INSULATED TYPE Collector current IC .............….......................… 9 0 0 A * Collector-emitter voltage VCES ......................… 1 2 0 0 V Maximum junction temperature T j m a x .............. 1 7 5 °C ●Flat base Type ●Copper base plate (non-plating) ●Tin plating pin terminals Dual switch (Half-Bridge) ●RoHS Directive compliant ●Recognized under UL1557, File E323585 APPLICATION AC Motor Control, Motion/Servo Control, Power supply, etc. OUTLINE DRAWING & INTERNAL CONNECTION Dimension in mm TERMINAL t=0.8 SECTION A Tolerance otherwise specified Division of Dimension Tolerance 0.5 to 3 ±0.2 over 3 to 6 ±0.3 over 6 to 30 ±0.5 over 30 to 120 ±0.8 over 120 to 400 ±1.
