80.0 x 36.0 x13.0 (MAX) 64.5 x 13.8 About 40.0 Unit mm mm g 4、SYSTEM BLOCK DIAGRAM 1 Free Datasheet http://www.datasheet4u.com CASIL SEMICONDUCTOR CO., LTD. CASIL OPTOELECTRONIC PRODUCT DEVELOPMENT LTD. 18/F., China Aerospace Centre, 143 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Tel:(852) 2330.

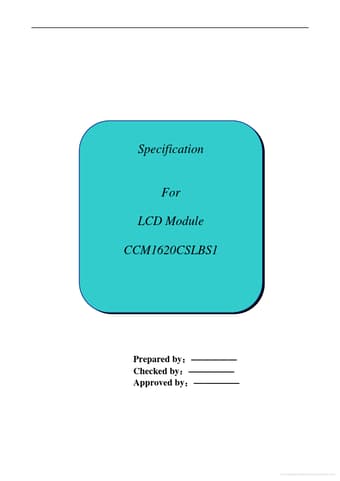

Specification For LCD Module CCM1620CSLBS1 Prepared by： Checked by： Approved by： Free Datasheet http://www.datasheet4u.com/ CASIL SEMICONDUCTOR CO., LTD. CASIL OPTOELECTRONIC PRODUCT DEVELOPMENT LTD. 18/F., China Aerospace Centre, 143 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong Tel:(852) 23307800 Fax:(852) 24551101 24540883(Direct) E-mail: lcd@casilsemi.com .

CCM1620CSLBS1 Features

* Display Type: STN Display Format: 16 Characters x 2 Lines Input Data: 4-Bits or 8-Bits interface available Display Font: 5 x 8 Dots Display Mode: Yellow-Green Driving Mode: 1/16 Duty, 1/5 Bias Operating Voltage: 5.0V Viewing Direction: 6 O’clock Backlight: LED, Yellow-Green (4.2V) 2、ABSOLUTE MAXIMU
