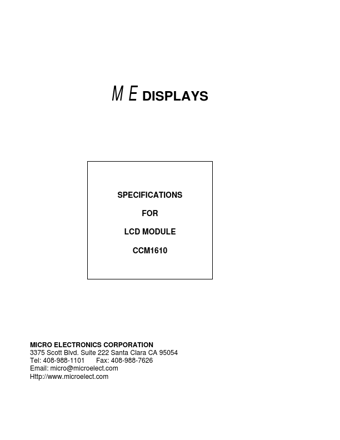

CCM1610 Datasheet - Micro Electronics

CCM1610 16 x 1 line Character

Ground Supply Voltage for Logic LCD Contrast Adjust Register Select Read / Write Enable Data Bit 0 Data Bit 1 Data Bit 2 Data Bit 3 Data Bit 4 Data Bit 5 Data Bit 6 Data Bit 7 CCM1610 16 x 1 line Character No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 * Function 0V 5V By User H: Data, L: Instructi.

CCM1610 Features

* Number of Characters Display Font Built-in Controller Input Data Power Supply Duty Cycle Options CCM1610 16 x 1 line Character 16 characters x 1 line 5 x 8 dots HD44780 or Comp 4 Bits or 8-Bits Interface +5 V Single Power 1/16 Duty EL/LED Backlight, TN/STN

* MECHANICAL PARAMETERS Module S
