MB431 Datasheet - CBC Microelectronics

Adjustable Precision Shunt Regulator

MB431 Features

* Average temperature coefficient 50 ppm/°C

* Temperature compensated for operation over the full temperature range

* Programmable output voltage

* Fast turn-on response low output noise Figure 1: Package Types of MB431 CBC Microelectronics Co., LTD. October, 2005-r

MB431 General Description

The MB431 is a 3-terminal adjustable shunt regulator with guaranteed temperature stability over the entire temperature range of operation. The output voltage may be set at any level greater than 2.5V (VREF) up to 36V merely by selecting two external resistors that act as a voltage divided network. D.

MB431 Datasheet (297.93 KB)

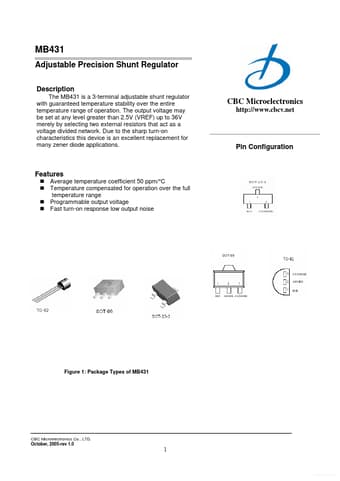

MB431 Datasheet Preview — Preview of MB431 PDF

Datasheet Details

Part number:

MB431

Manufacturer:

CBC Microelectronics

File Size:

297.93 KB

Description:

Adjustable precision shunt regulator.
