MB431U Datasheet - CBC Microelectronics

Adjustable Precision Shunt Regulator

MB431U Features

* Average temperature coefficient 50 ppm/°C

* Temperature compensated for operation over the full temperature range

* Programmable output voltage

* Fast turn-on response low output noise CBC Microelectronics http://www.cbcv.net Pin Configuration SOP8 Figure 1: Pack

MB431U General Description

The MB431U is a 3-terminal adjustable shunt regulator with guaranteed temperature stability over the entire temperature range of operation. The output voltage may be set at any level greater than 2.5V (VREF) up to 18V merely by selecting two external resistors that act as a voltage divided network. .

MB431U Datasheet (265.86 KB)

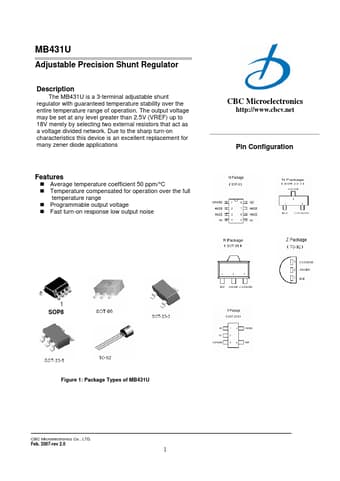

MB431U Datasheet Preview — Preview of MB431U PDF

Datasheet Details

Part number:

MB431U

Manufacturer:

CBC Microelectronics

File Size:

265.86 KB

Description:

Adjustable precision shunt regulator.
