2N6707 - General Purpose Medium Power Amplifier

Datasheet Summary

Description

SYMBOL VCBO Collector Base Voltage VCEO Collector Emitter Voltage VEBO Emitter Base Voltage IC Collector Current Continuous PD Total Power Dissipation Tj, Tstg Operating And Storage Junction Temperature Range VALUE 100 80 5 1.5 850 -55 to +150 UNIT V V V A mW ºC ELECTRICAL CHARACTERISTICS (Ta=25 º

📥 Download Datasheet

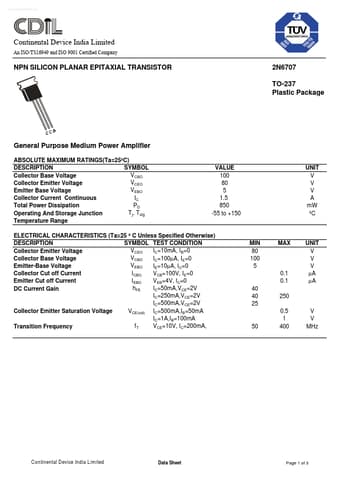

Datasheet preview – 2N6707

Datasheet Details

Part number 2N6707
Manufacturer CDIL
File Size 158.74 KB
Description General Purpose Medium Power Amplifier
Datasheet download datasheet 2N6707 Datasheet
