2N6703 - Silicon NPN Power Transistor

Datasheet Summary

Description

Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 110V(Min) High Switching Speed Low Saturation Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for converters, inverters, pulse-width-modulated regulators and

📥 Download Datasheet

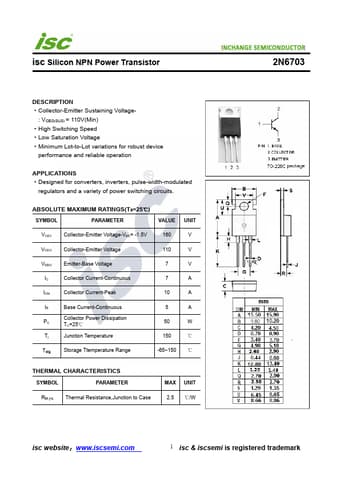

Datasheet preview – 2N6703

Datasheet Details

Part number 2N6703
Manufacturer INCHANGE
File Size 192.27 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2N6703 Datasheet
Additional preview pages of the 2N6703 datasheet.

📁 Similar Datasheet

  • 2N6703 - High-Current silicon NPN Versawatt Transistors (ETC)
  • 2N6702 - High-Current silicon NPN Versawatt Transistors (ETC)
  • 2N6702 - Silicon Power Transistor (SavantIC)
  • 2N6704 - High-Current silicon NPN Versawatt Transistors (ETC)
  • 2N6705 - General Purpose Medium Power Amplifier (CDIL)
  • 2N6707 - General Purpose Medium Power Amplifier (CDIL)
  • 2N6708 - PNP SILICON PLANAR EPITAXIAL TRANSISTOR (CDIL)
  • 2N6714 - NPN SILICON PLANAR MEDIUM POWER TRANSISTORS (Zetex Semiconductors)
  • 2N6714 - NPN POWER TRANSISTORS (GE)
  • 2N6714 - COMPLEMENTARY SILICON POWER TRANSISTORS (Central Semiconductor)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text
isc Silicon NPN Power Transistor INCHANGE Semiconductor 2N6703 DESCRIPTION ·Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 110V(Min) ·High Switching Speed ·Low Saturation Voltage ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for converters, inverters, pulse-width-modulated regulators and a variety of power switching circuits. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCEV Collector-Emitter Voltage-VBE= -1.
