| Part number | BC182A |
|---|---|
| Manufacturer | CDIL |
| File Size | 107.24 KB |
| Description | NPN SILICON PLANAR EPITAXIAL TRANSISTORS |
| Datasheet |

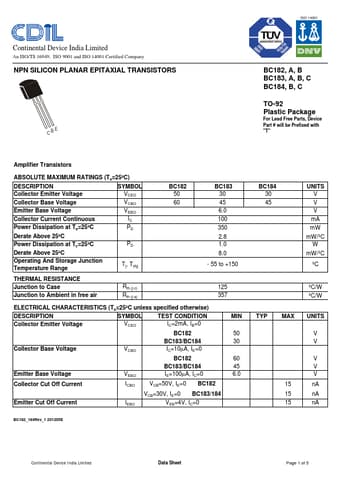

 BC182A Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: BC182A, BC182. Please refer to the document for exact specifications by model. |
|
|
SYMBOL Collector Emitter Voltage VCEO Collector Base Voltage VCBO Emitter Base Voltage VEBO Collector Current Continuous IC Power Dissipation at Ta=25ºC PD Derate Above 25ºC Power Dissipation at Tc=25ºC PD Derate Above 25ºC Operating And Storage Junction Temperature Range Tj, Tstg BC182 50 60 BC183 30 45 6.0 100 350 2.8 1.0 8.0 - 55 to +150 THERMAL RESISTANCE Junction to Case Junction to Ambient in free air Rth (j-c) Rth (j-a) 125 357 ELECTRICAL CHARACTERISTICS (Ta=25ºC un
