BC183, BC182 Datasheet - SEMTECH

BC183 NPN Silicon Epitaxial Planar Transistor

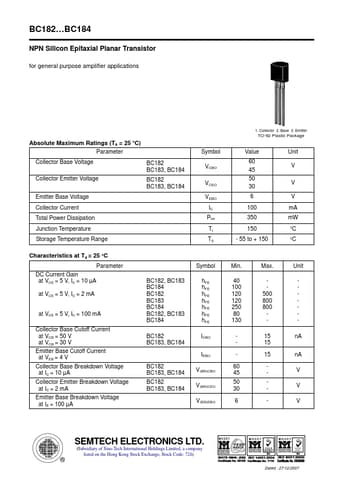

BC182…BC184 NPN Silicon Epitaxial Planar Transistor for general purpose amplifier applications Absolute Maximum Ratings (Ta = 25 OC) Parameter Collector Base Voltage Collector Emitter Voltage BC182 BC183, BC184 BC182 BC183, BC184 Emitter Base Voltage Collector Current Total Power Dissipation Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC Ptot Tj TS 1. Collector 2. Base 3. Emitter TO-92 Plastic Package Value 60 45 50 30 6 100 350 150 - 55 to + 150 Unit V V V m.

BC182-SEMTECH.pdf

BC183 Datasheet Preview — This datasheet PDF includes multiple part numbers: BC183, BC182. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BC183, BC182

Manufacturer:

SEMTECH

File Size:

135.88 KB

Description:

Npn silicon epitaxial planar transistor.

Note:

This datasheet PDF includes multiple part numbers: BC183, BC182.
Please refer to the document for exact specifications by model.
