NPN SILICON PLANAR EPITAXIAL TRANSISTOR

CSC2002 General Description

Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Base Current Collector Power Dissipation Storage Temperature Junction Temperature SYMBOL VCEO VCBO VEBO IC IB PC Tstg Tj VALUE 60 60 5 300 60 600 - 55 to +150 +150 UNITS V V V mA mA mW ºC ºC ABSOLUTE MAXIMUM RAT.

CSC2002 Datasheet (145.31 KB)

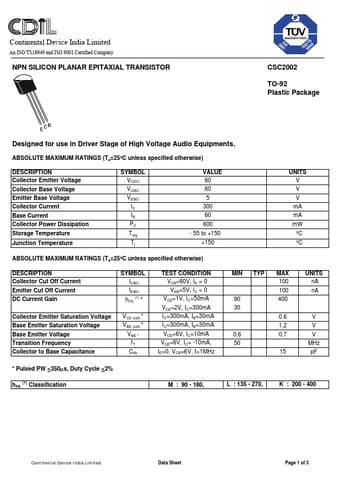

CSC2002 Datasheet Preview — Preview of CSC2002 PDF

Datasheet Details

Part number:

CSC2002

Manufacturer:

CDIL

File Size:

145.31 KB

Description:

Npn silicon planar epitaxial transistor.
Continental Device India Limited An ISO/TS16949 and ISO 9001 Certified Company NPN SILICON PLANAR EPITAXIAL TRANSISTOR CSC2002 TO-92 Plastic Package.
