CSC2233, CSC2073 Datasheet - RECTRON

CSC2233 Power Transistors

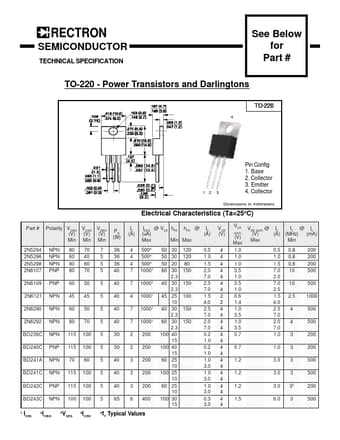

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION See Below for Part # TO-220 - Power Transistors and Darlingtons TO-220 4 12 3 Pin Config 1. Base 2. Collector 3. Emitter 4. Collector Dimensions in millimeters Electrical Characteristics (Ta=25oC) Part # Polarity VCBO VCEO VEBO (V) (V) (V) Min Min Min PD (W) IC (A) ICES @ VCE hFE hFE @ IC (uA) (A) Max Min Max VCE (V) VCE (SAT) (V) Max VBE (SAT) @ (V) Max IC (A) fT @ IC (MHz) (mA) Min 2N5294 NPN 80 70 7 36 4 5004 50 30 120 0.5 4 1.0 .

CSC2073-RECTRON.pdf

This datasheet PDF includes multiple part numbers: CSC2233, CSC2073. Please refer to the document for exact specifications by model.
CSC2233 Datasheet Preview Page 2 CSC2233 Datasheet Preview Page 3

Datasheet Details

Part number:

CSC2233, CSC2073

Manufacturer:

RECTRON

File Size:

60.30 KB

Description:

Power transistors.

Note:

This datasheet PDF includes multiple part numbers: CSC2233, CSC2073.
Please refer to the document for exact specifications by model.
