CSC2328A - PNP/NPN COMPLEMENTARY SILICON EPITAXIAL TRANSISTOR

The CSC2328A by CDIL is a PNP/NPN COMPLEMENTARY SILICON EPITAXIAL TRANSISTOR. Below is the official datasheet preview.

📥 Download Datasheet

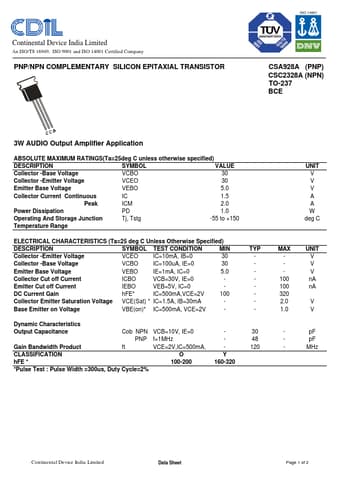

Official preview page of the CSC2328A PNP/NPN COMPLEMENTARY SILICON EPITAXIAL TRANSISTOR datasheet (CDIL).

Datasheet Details

Part number CSC2328A
Manufacturer CDIL
File Size 65.66 KB
Description PNP/NPN COMPLEMENTARY SILICON EPITAXIAL TRANSISTOR
Datasheet download datasheet CSC2328A-CDIL.pdf
Additional preview pages of the CSC2328A datasheet.

CSC2328A Product details

Description

SYMBOL VALUE Collector -Base Voltage VCBO 30 Collector -Emitter Voltage VCEO 30 Emitter Base Voltage VEBO 5.0 Collector Current Continuous IC 1.5 Peak ICM 2.0 Power Dissipation PD 1.0 Operating And Storage Junction Tj, Tstg -55 to +150 Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless Otherwise Specified) DESCRIPTION SYMBOL TEST CONDITION MIN Collector -Emitter Voltage VCEO IC=10mA, IB=0 30 Collector -Base Voltage VCBO IC=100uA, IE=0 30 Emitter B
