CSC2335 NPN PLASTIC POWER TRANSISTOR

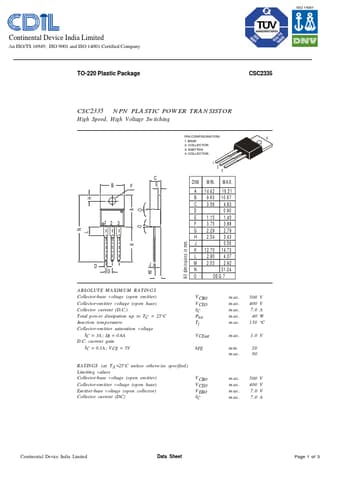

Continental Device India Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company TO-220 Plastic Package CSC2335 CSC2335 NPN PLASTIC POWER TRANSISTOR High Speed, High Voltage Switching N LH BF C E 12 3 A OO K D G J M All diminsions in mm. PIN CONFIGURATION 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR 1 2 3 DIM MIN. MAX. A 14.42 16.51 B 9.63 10.67 C 3.56 4.83 D 0.90 E 1.15 1.40 F 3.75 3.88 G 2.29 2.79 H 2.54 3.43 J 0.56 K 12.70 14.73 L 2.80 4.07 M 2.03 2.92 N 31.24 O DEG 7 4.

CSC2335-CDIL.pdf

Preview of CSC2335 PDF
CSC2335 Datasheet Preview Page 2 CSC2335 Datasheet Preview Page 3

Datasheet Details

Part number:

CSC2335

Manufacturer:

CDIL

File Size:

119.24 KB

Description:

Npn plastic power transistor.
