CA3509M4

L TO S BAND LOW NOISE AMPLIFIER IC

CA3509M4 Features

* Low noise figure and high associated gain NF=0.4dB Typ., Ga=17.0dB Typ. @Vdd=3.0V, Idd=15mA, f=1.575GHz Description:

* Low Noise and High Gain

* On chip Bias supply circuit

* On chip ESD protection diode Applications:

* Low Noise Amplifier IC for Global Navigation Satellite

CA3509M4 General Description


* Low Noise and High Gain
* On chip Bias supply circuit
* On chip ESD protection diode Applications:
* Low Noise Amplifier IC for Global Navigation Satellite Systems (GNSS) like GPS, GLONASS, Beidou and Galileo
* Low Noise Amplifier IC for Satellite Radio (SDARS, DMB, etc.) Ant.

CA3509M4 Datasheet (440.96 KB)

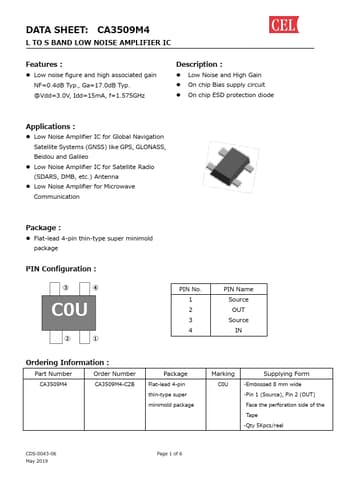

Preview of CA3509M4 PDF
